What is MSA+?

Support worker safety and productivity with the ALTAIR io4 Portable Gas Detector with connectivity to the Grid—a connected work platform.

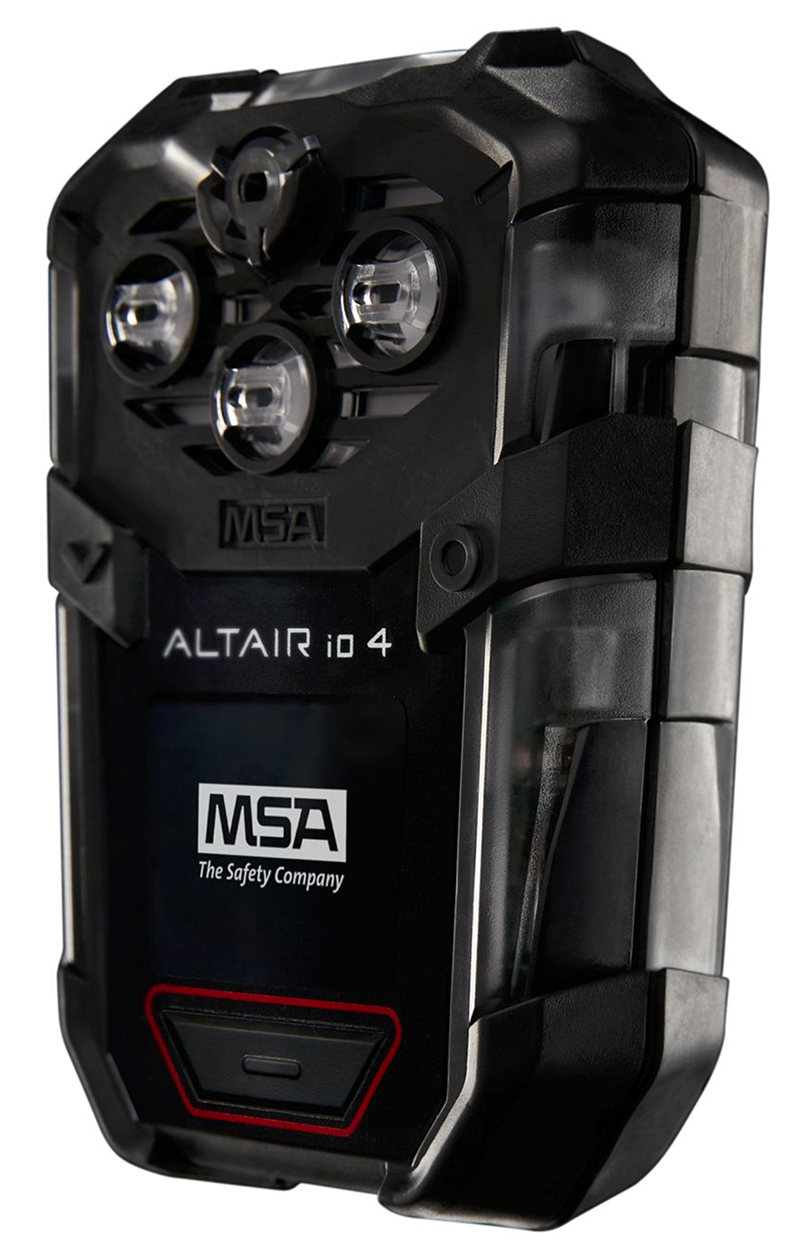

The ALTAIR io 4 Gas Detection Wearable provides the durability you expect from MSA paired with advanced sensor technology.

It’s Tough. It’s Intuitive. It’s Connected.

Works with the MSA Grid software
Collects real-time exposure and maintenance data
Enables offsite safety managers and onsite workers to communicate quickly
Provides immediate diagnostic and service solutions
Out-of-the-box cellular and GPS integration and over-the-air software updates
Syncs device data in real-time to the cloud
Encourages a behavior-based safety approach
Visibility to exposure data, asset management, record keeping and more

Benefits

The MSA+ is a comprehensive connected solution in a single platform that improves safety, increases productivity, ensures compliance, and reduces maintenance while providing access across multiple product groups.

Eliminates up-front capital expense
Ensures uptime
Utilizes up-to-date technology

LEARN MORE

Specifications

Applications	Turnarounds & Plant Maintenance Emergency Response Confined Space	Approvals / Standards	FCC and Industry Canada Class I, Division 1, Groups A, B, C and D T4 -20C to +55C Class I, Zone 0, AEx da ia IIC Ga T4
Cellular Carriers	USA Verizon Coverage AT&T Global Network LTE-M / 2G Fallback	Data Logging	Minimum 90-day cloud-synced data logs. Device data synced and stored in customer Grid account.
Display Type	High-resolution liquid crystal display	Location Awareness	GNSS: Concurrent GNSS (GPS and GLONASS) GPS Accuracy: 2.5 meter: GPS accuracy will be influenced by surroundings, infrastructure, & environmental conditions
Markets	Utilities Construction Oil & Gas Mining Fire Service General Industry	Operating Temperature	-20C to +55 C (-4F to +131 F)
Run Time	17 Hours under standard operating conditions	Size	Weight: 261 grams (9 oz) Dimensions: 11.7 x 7.8 x 3.9 cm (4.6 x 3.1 x 1.5 in)
Warranty	Always under warranty with subscription

BATTERY & CHARGING

Battery: 2 Ah Rechargeable
Charge Time: Typical full charge is 4.5 hours at room temperature
Charging Temperature Range: 0°C-40°C*

DURABILITY

Exceeds 26 drops from 4 feet (1.2 m) (MIL-STD-810G 516.6 Transit Drop)
Capable of surviving an incidental 25 foot (7.5 m) drop onto concrete
Survives 60 minutes in NFPA 1982-2018 tumble tester
Dust and waterproof IP68 rating (2 m for 1 hour)

SENSOR LIFE

Gas	Type	Typical Sensor Life*	Range	Resolution
Combustible	Catalytic	5 Years	0-100% LEL or Varying Vol %	1% LEL or 0.05 Vol %
O2	Electrochemical	7 Years	0 – 30 Vol %	0.1 Vol %
CO	Electrochemical	7 Years	0 – 1,999 ppm	1 ppm
H2S	Electrochemical	7 Years	0 – 199 ppm	1 ppm
H2S Low Concentration (Coming Soon)	Electrochemical	7 Years	0 – 99.9 ppm	0.1 ppm
SO2 (Coming Soon)	Electrochemical	7 Years	0 – 20 ppm	0.1 ppm
NO2 (Coming Soon)	Electrochemical	7 Years	0 – 50 ppm	0.1 ppm
CO – Hydrogen Resistant	Electrochemical	7 Years	0 – 1,999 ppm	1 ppm
* Typical sensor life can vary due to environmental conditions and / or combustible sensor poisoning

Subscription

As part of the MSA+ program, pricing will be based on a 36-, 48-, or 60-month subscription offering the flexibility to pay monthly, quarterly, annually, or all up-front based on the tier level of service they desire.

	STARTER Grid Compliance Service	STANDARD Grid Fleet Management Service	COMPLETE Grid Live Monitor Service
Emergency Live Monitor
OTA Software Updates
MSA id Digital Device Assignment
90-Days Cloud Logs
Fleet Cloud Configuration
Fleet Manager Dashboard
Streamlined Device Compliance
Fleet Manager Reporting
ALTAIR io DOCK Monitoring
Lifetime Cloud Logs
Full Event Live Monitoring
Event Management
Fleet Messaging
Location Awareness
